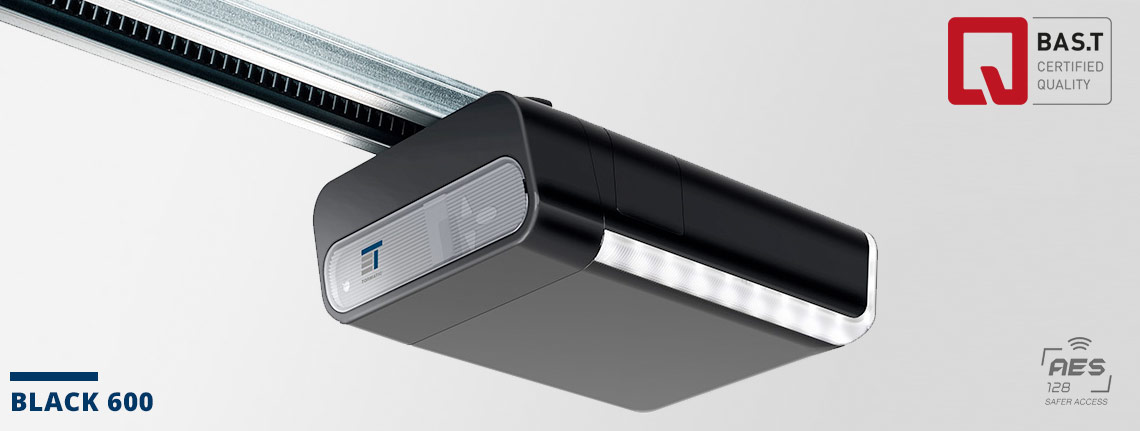

Garage Door Operator BLACK 600

AT A GLANCE

Operators for up-and-over and sectional doors

Suitable for garage doors up to 10 m²

Clearly arranged 3-button programming

Combinable with all rail systems by TORMATIC

Automatic closing function can be enabled

Rapid action function up to 24 cm/sec.

Smooth running due to ramp function

High-class Door-Select-Function

TECHNICAL SPECIFICATIONS

Push and pull force

600 N

Supply voltage

230 V / 50 Hz

Operating current

0.9 A

Power consumption at work

160 W

Power consumption at rest

< 0.5 W

Running speed

17-24 cm/sec.

Duty cycle

30% ED

Lighting

1.6 W LED

Encryption technology

AES 128-Bit

Radio control

433 MHz,

KeeLoq rolling code

ACCESSORIES Garage Door Operators

Hand transmitter BLACK Remote
3-channel hand transmitter, 433 MHz, with KeeLoq rolling code, AES

Push button DigiCode Premium
Metal keyboard, 433 MHz, KeeLoq rolling code

Design micro transmitter
2-channel hand transmitter in carbon optics, 433 MHz, KeeLoq rolling code

Emergency release with profile cylinder
For double-leafed doors, sliding overhead and sectional garage doors

Hand transmitter MAX 43-2
2-channel hand transmitter, 433 MHz, KeeLoq rolling code

Fitting for sectional doors
For sectional doors with a slat height of 360 - 565 mm

Hand transmitter MAX 43-4
4-channel hand transmitter, 433 MHz, KeeLoq rolling code
